High Grade Hazardous Area Lighting Ip65 Waterproof Explosion Proof Lamp 50w 100w 150w 200w
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीनी मुख्य भूमि |
| ब्रांड नाम: | Finboard |
| प्रमाणन: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| मॉडल संख्या: | Rfepl97 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 10 पीसी |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | बॉक्स पैकेज + बुलबुला या के रूप में अनुकूलित |
| प्रसव के समय: | 10-15 दिन या पुष्टि करें |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 5000 पीसीएस/माह |
|
विस्तार जानकारी |
|||
| कीवर्ड: | Iindustrial एलईडी विस्फोट प्रूफ प्रकाश जुड़नार | शक्ति: | 50w 100w 150w 200w |
|---|---|---|---|
| चालक: | AC100-265V | सुरक्षा स्तर: | IP66 |
| रंग तापमान: | 5500-6500K | प्रयोग: | खतरनाक स्थान |
| प्रमुखता देना: | IP65 waterproof explosion proof lamp,hazardous area lighting 50w 200w,explosion proof lighting fixtures with warranty |
||
उत्पाद विवरण

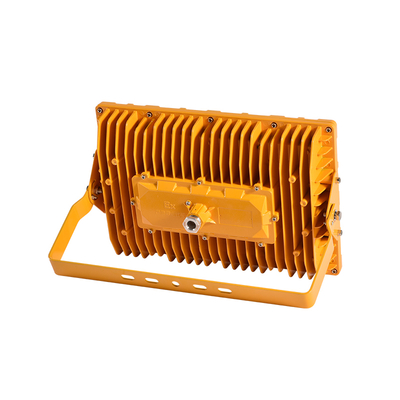

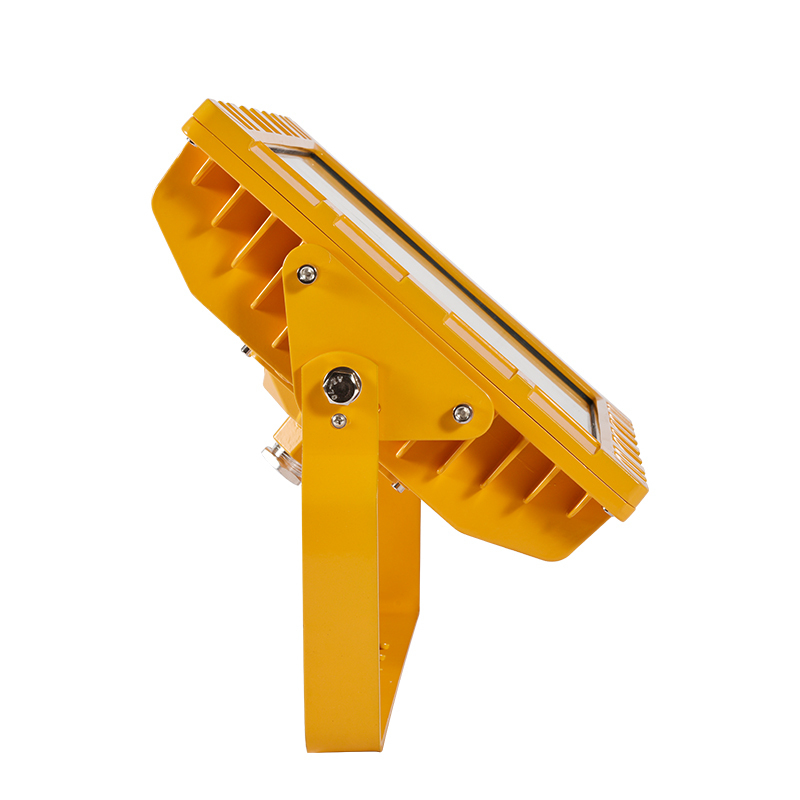

High Grade Hazardous Area Lighting IP65 Waterproof Explosion Proof Lamp 50W 100W 150W 200W
Product Attributes
| Attribute | Value |
|---|---|
| Keywords | Industrial LED Explosion Proof Lighting Fixtures |
| Power | 50W 100W 150W 200W |
| Driver | AC100-265V |
| Protection Level | IP66 |
| Color Temperature | 5500-6500K |
| Usage | Hazardous Places |
Characteristics
Optical Performance
- High-efficiency SMD2835/3030 LEDs delivering 100-110 lm/W
- 5500-6500K cool white light with ≥80 CRI
- Optimized optical design for 120° beam angle
Electrical Features
- Wide voltage input (100-265V AC)
- <0.5% total harmonic distortion
- Power factor >0.95
- Surge protection up to 4kV
Robust Safety Features
- IP65-rated waterproof/dustproof construction
- Explosion-proof certification for Zone 1/2 hazardous areas
- Corrosion-resistant surface treatment
- Impact-resistant tempered glass (IK08 rating)
- Spark-free operation design
Thermal Management System
- Advanced cooling fins design (30% more surface area)
- Temperature-controlled driver compartment
- Automatic power regulation at high temperatures
- Maintains LED junction temperature below 85°C
Specifications
| Model | RF-97II Series |
|---|---|
| Power Options | 50W / 100W / 150W / 200W / 240W / 300W |
| Material | Aluminum Alloy + Tempered Glass |
| Dimensions (mm) | 250×170×132 (50W) to 460×310×150 (300W) |
| Voltage | AC 100-265V (Auto-Sensing) |
| Light Source | High-Efficiency SMD2835/3030 LEDs |
| IP Rating | IP66 (Dustproof & Waterproof) |
| CRI | ≥Ra80 |
| Color Temp. | 5500-6500K (Cool White) |
| Light Efficacy | 100-110 lm/W |
| Certifications | ATEX, IECEx, CE, RoHS (Customizable) |
Introduction
Industrial LED explosion-proof lighting fixtures are essential for hazardous environments where safety, durability, and high-performance illumination are critical. Our RF-97II Series offers a range of 50W, 100W, 150W, 200W, 240W, and 300W models, designed for Zone 1/2 (gas) and Zone 21/22 (dust) applications. With an IP66 rating, robust construction, and energy-efficient LED technology, these fixtures ensure reliable operation in extreme conditions such as mining, oil refineries, chemical plants, and gas stations.
इस उत्पाद के बारे में अधिक जानकारी जानना चाहते हैं
