300W LED Explosion Proof Flood Light IECEx Drilling Rig Offshore Platform IP67 Marine IP67 Die-Cast Aluminum ADC12
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | गुआंग्डोंग, चीन |
| ब्रांड नाम: | ECER |
| प्रमाणन: | IECEx Ex d IIC T6 Gb, ISO 9001:2015 |
| मॉडल संख्या: | ईपीएफएल-300W-डीआरएल |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 10 पीसी |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | बॉक्स पैकेज + बुलबुला या के रूप में अनुकूलित |
| प्रसव के समय: | 10-15 दिन या पुष्टि करें |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 5000 पीसी/माह |
|
विस्तार जानकारी |
|||
| शक्ति: | 300W | चमकदार प्रवाह: | 39000एलएम |
|---|---|---|---|
| प्रभावकारिता: | 130 एलएम/डब्ल्यू | बीम कोण: | 90° |
| रंग तापमान: | 5000K | एलईडी चिप: | ब्रिजलक्स एसएमडी 3030 |
| आईपी रेटिंग: | आईपी67 | आवास सामग्री: | समुद्री-ग्रेड कोटिंग के साथ डाई-कास्ट एल्यूमीनियम ADC12 |
| परिचालन तापमान: | -40°C से +60°C | प्रमाणन: | IECEx Ex d IIC T6 Gb |
| जीवनकाल: | ≥50,000 घंटे L70 | गारंटी: | 5 साल |
| प्रमुखता देना: | 300W LED explosion proof flood light,IECEx drilling rig offshore platform light,IP67 marine die-cast aluminum flood light |
||
उत्पाद विवरण
300W LED Explosion Proof Flood Light - IECEx Drilling Rig Offshore Platform IP67 Marine
The EPFL-300W-DRL is a 300W LED explosion proof flood light delivering 39000lm luminous flux with 130lm/W efficiency. IECEx Ex d IIC T6 Gb certified with IP67 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 with Marine-Grade Coating for demanding classified area applications.
Key Features
- 300W High-Efficiency Output - 39000lm total luminous flux at 130lm/W, replacing traditional HID fixtures with superior energy performance
- IECEx Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- Drilling Rig Optimized - Vibration-dampened mounting system rated for continuous 5-15Hz drill floor vibration, with redundant cable gland entries for harsh offshore duty
- IP67 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance

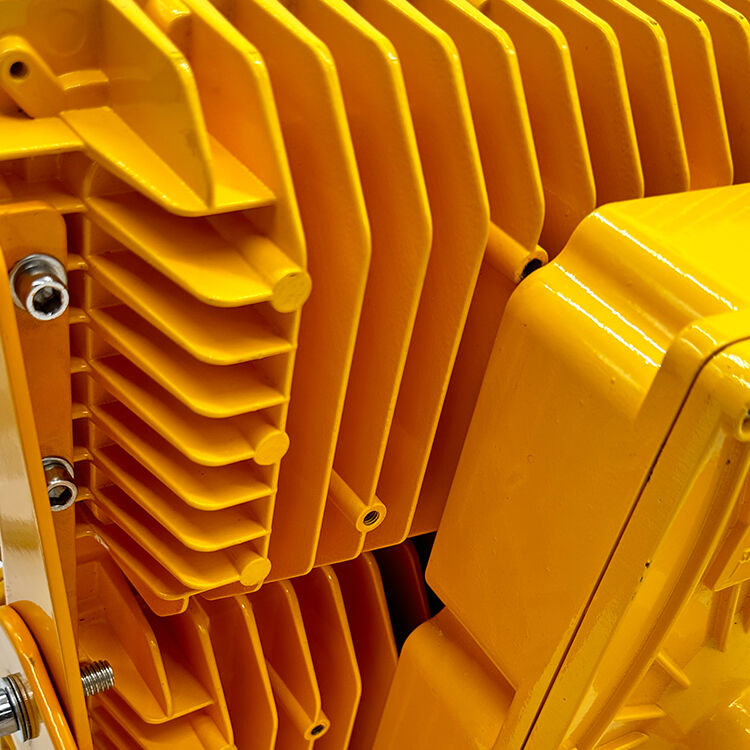

- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 300W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for Offshore drilling rigs, jack-up platforms, semi-submersibles, and open-deck marine classified zones:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-300W-DRL |
| Power Consumption | 300W |
| Luminous Flux | 39000lm |
| Efficacy | 130lm/W |
| Beam Angle | 90° |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP67 |
| Housing Material | Die-Cast Aluminum ADC12 with Marine-Grade Coating |
| Operating Temperature | -40°C to +60°C |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-300W-DRL design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
