600W LED Explosion Proof Flood Light with 90° Wide Beam ATEX IIB T6 Certified and LUMILEDS SMD Chip

The RFEPL8280-600W-WF90 is a 600W LED explosion proof flood light from the RFEPL8280 series, featuring ultra-wide 90° high-power flood with LUMILEDS SMD chip technology delivering 100-120lm/W efficiency. ATEX Ex db mb IIB T6 certified with IP65 WF2 protection, 6KV lightning protection, and stainless steel hardware passing 500-hour salt spray testing.

• LUMILEDS SMD Chip Technology - Premium LM-80 tested LED chips delivering 100-120lm/W with CRI ≥80 for accurate color rendering in hazardous environments
• ATEX IIB T6 Certified - Ex db mb IIB T6 explosion-proof rating for IIA, IIB, IIC explosive atmospheres, temperature classes T1-T6, Zone 1/Zone 2 gas and Zone 21/Zone 22 dust
• 90° Beam Configuration - Ultra-wide 90° high-power flood optimized for specific application requirements
• 180° Adjustable Mounting Bracket - Flexible angle adjustment for precise light positioning in any installation scenario
• Die-Cast Fin Heat Dissipation - Advanced thermal management with high-conductivity aluminum substrate ensuring reliable 600W continuous operation
• 6KV Lightning Protection - Built-in surge protection for exposed outdoor installations in lightning-prone regions

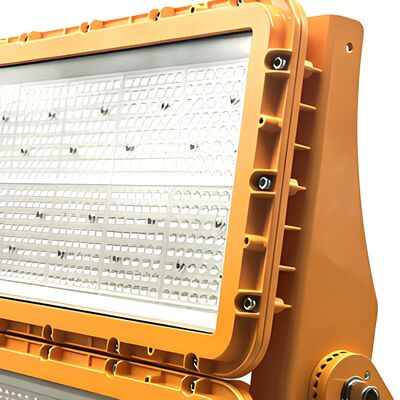

• High Transmittance Tempered Glass - Safety glass lens with ≥92% light transmission and impact resistance
• All Stainless Steel Hardware - 500-hour salt spray certified fittings for long-term corrosion resistance
• 600W Ultra-Wide 90° Coverage - Maximum illumination footprint for large refinery complexes, replacing multiple lower-wattage fixtures
• IP65 Waterproof WF2 - Fully sealed against dust and water jets, corrosion-resistant for harsh industrial atmospheres
• Universal AC 100-277V Input - Power factor ≥0.95, compatible with global electrical distribution systems

The RFEPL8280 series supports all standard mounting configurations:

• Ceiling mount
• Boom mount
• Bracket mount
• Wall mount
• Flange mount
• Guardrail mount

Engineered for large refinery complexes, petrochemical tank farms, and major process unit areas requiring maximum coverage:

• Oil extraction, refining and petrochemical processing
• Offshore platforms, FPSOs and drilling rigs
• Chemical storage, mixing and processing facilities
• Electric power generation and distribution stations
• Militar.y and defense hazardous installations
• Combustible dust environments (Zone 21, Zone 22)
• Emergency and normal lighting in classified areas

The RFEPL8280 series combines ATEX-certified safety with LUMILEDS LED efficiency. Each unit is factory-tested for explosion-proof integrity, photometric performance, and 500-hour salt spray corrosion resistance. With six mounting configurations and three beam angle options, the RFEPL8280 platform adapts to the full spectrum of hazardous area lighting requirements.
