600W LED Explosion Proof Flood Light 15° Ultra-Narrow Helideck Helicopter CAP 437 IECEx IP66 Die-Cast Aluminum ADC12
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | गुआंग्डोंग, चीन |
| ब्रांड नाम: | ECER |
| प्रमाणन: | IECEx Ex d IIC T6 Gb, ISO 9001:2015 |
| मॉडल संख्या: | ईपीएफएल-600डब्ल्यू-एचएलडी |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 10 पीसी |
|---|---|
| मूल्य: | बातचीत योग्य |
| पैकेजिंग विवरण: | बॉक्स पैकेज + बुलबुला या के रूप में अनुकूलित |
| प्रसव के समय: | 10-15 दिन या पुष्टि करें |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 5000 पीसी/माह |
|
विस्तार जानकारी |
|||
| शक्ति: | 600W | चमकदार प्रवाह: | 72000 एलएम |
|---|---|---|---|
| प्रभावकारिता: | 120 एलएम/डब्ल्यू | बीम कोण: | 15° |
| रंग तापमान: | 5000K | एलईडी चिप: | ब्रिजलक्स एसएमडी 3030 |
| आईपी रेटिंग: | आईपी66 | आवास सामग्री: | समुद्री-ग्रेड कोटिंग के साथ डाई-कास्ट एल्यूमीनियम ADC12 |
| परिचालन तापमान: | -40°C से +55°C | प्रमाणन: | IECEx Ex d IIC T6 Gb |
| जीवनकाल: | ≥50,000 घंटे L70 | गारंटी: | 5 साल |
| प्रमुखता देना: | 600W LED explosion proof flood light,Helideck helicopter CAP 437 flood light,IECEx IP66 die-cast aluminum flood light |
||
उत्पाद विवरण

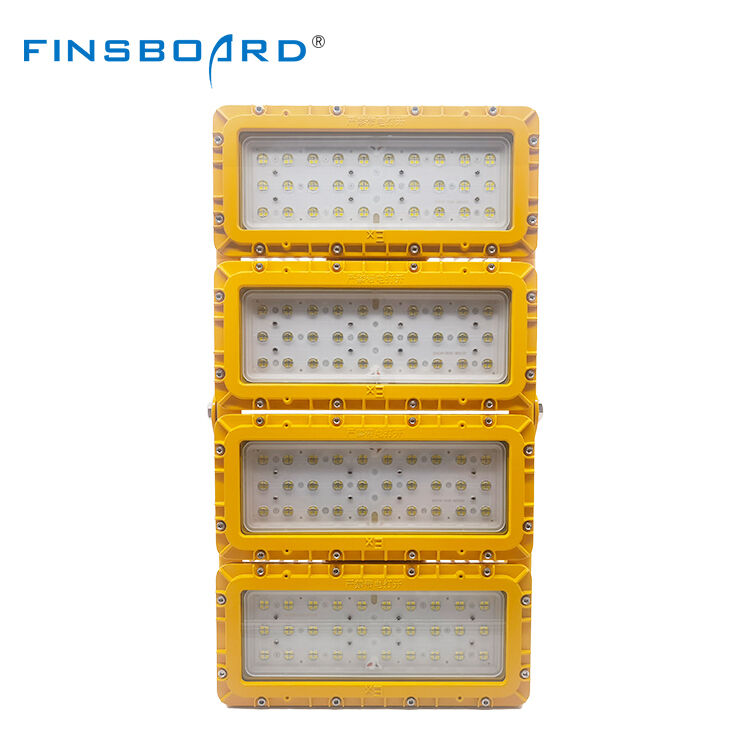

600W LED Explosion Proof Flood Light - 15° Ultra-Narrow Helideck Helicopter CAP 437 IECEx IP66
The EPFL-600W-HLD is a 600W LED explosion proof flood light delivering 72000lm luminous flux with 120lm/W efficiency. IECEx Ex d IIC T6 Gb certified with IP66 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 with Marine-Grade Coating for demanding classified area applications.
Key Features
- 600W High-Efficiency Output - 72000lm total luminous flux at 120lm/W, replacing traditional HID fixtures with superior energy performance
- IECEx Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- Helideck-Certified 15° Beam - Ultra-narrow beam engineered for offshore helideck perimeter illumination, compliant with CAP 437 and ICAO Annex 14 heliport lighting requirements
- IP66 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 600W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for Offshore helicopter decks, helideck perimeter lighting, FPSO helicopter landing areas compliant with CAP 437:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-600W-HLD |
|---|---|
| Power Consumption | 600W |
| Luminous Flux | 72000lm |
| Efficacy | 120lm/W |
| Beam Angle | 15° |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 with Marine-Grade Coating |
| Operating Temperature | -40°C to +55°C |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-600W-HLD design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
